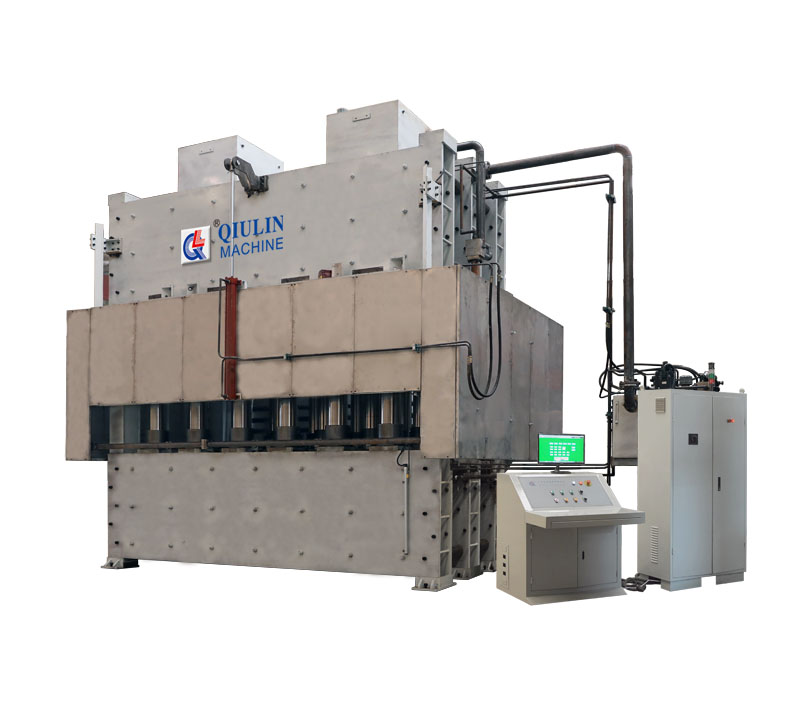

Adopting digital control technology, the user can set the date byindustrial PC at various stages of manufacturing according to the

process data of Aramid honeycomb panels.

The surface temperature on the hot platen is controlled by the digital proportional electric control valve. The press closing opening the full stroke is controlled by the servo motor hydraulic pump with receiving the signal sent from displacement sensor. And the hydraulic pressure accuracy is controlled by the proportional hydraulic valve servo motor pump group.

Working temperature for hot platen: 50一200℃±3℃ Hot plate temperature heating or cooling rate is controllable, uneven surface temperature is less than or equal to 3℃

The heating system can be electric heating or natural gas heating,and the cooling rate is controlled by the heat pump system.

Pressure precision:±0.3MPa, pressure rate: 0.1 mpa/s

Pressure keeping accuracy:±0.3MPa

公稱總壓力 Total pressure：8000kN

工作層數(shù) Working layers：2

有效工作幅面最大壓強 Max.pre.int.of valid working width：7.1 kgf/cm2

熱壓板數(shù)量及規(guī)格 Platen No& size：3-4300 x 2600 x 42 mm

熱壓板間距Opening：400mm

加熱方式及介質 Heating way：天然氣、電加熱導熱油介質循環(huán)

壓板開啟方式 Platen open way：人工橫向 Length direction, manually

進料方式 Loading method：電動Automatically

最高工作溫度 The max temperature：200℃
